KIT NV2
Wooden roof crossing kit for ventilated conditions

  • Stainless steel twin wall crossing/fixing system for wooden roofs/floors, insulation 25/50 mm

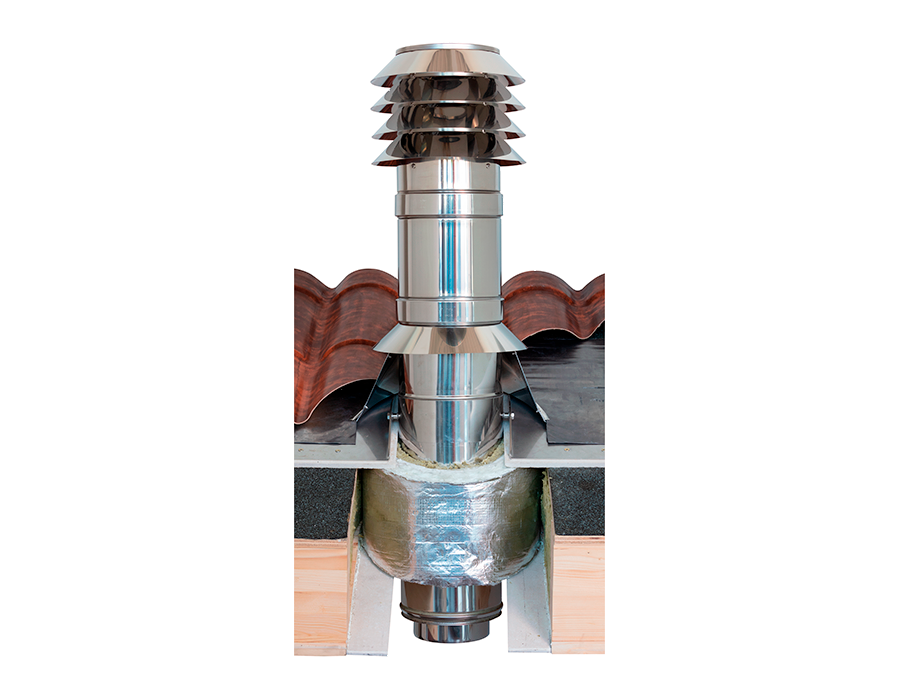

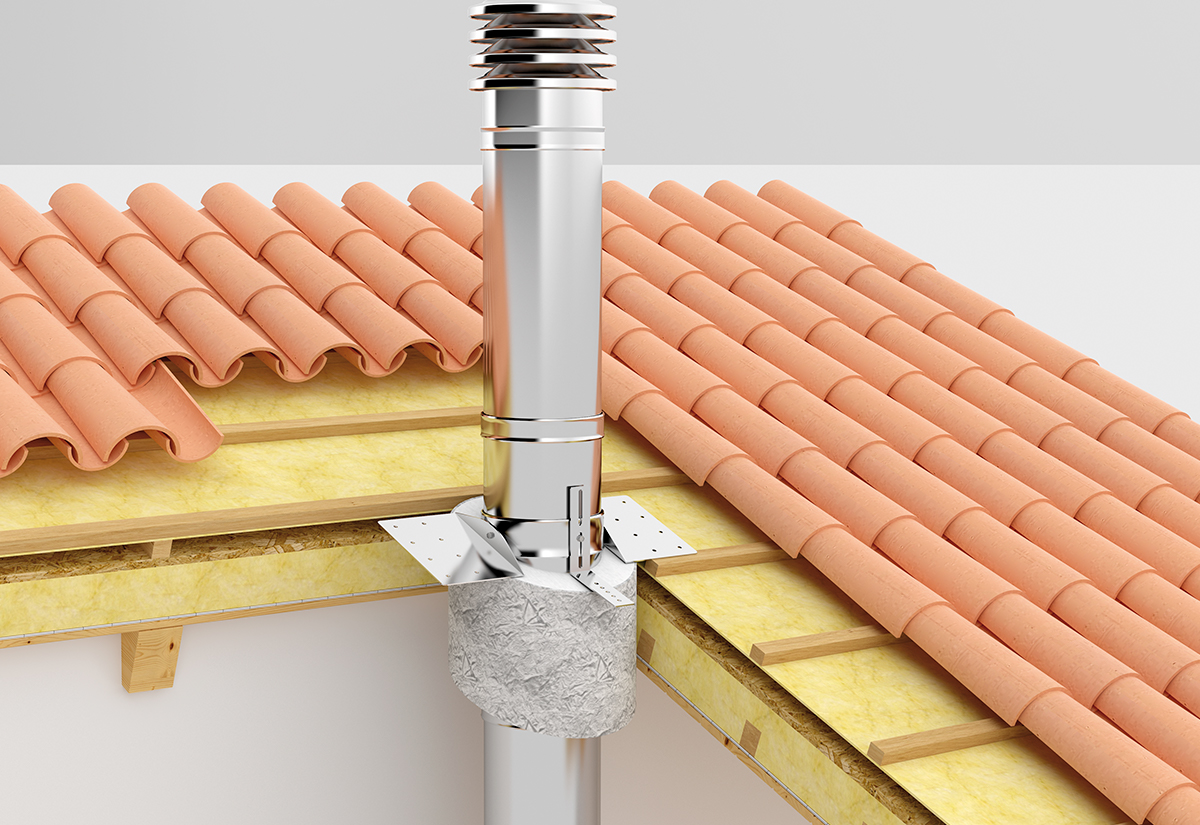

  • Wooden roof crossing system with ventilated conditions
  • No heat loss
  • Ideal solution for high energy efficiency houses (classe A)
  • Totale compatibility with the single wall range
  • Working temperature up to 600ºC and soot fires resistant

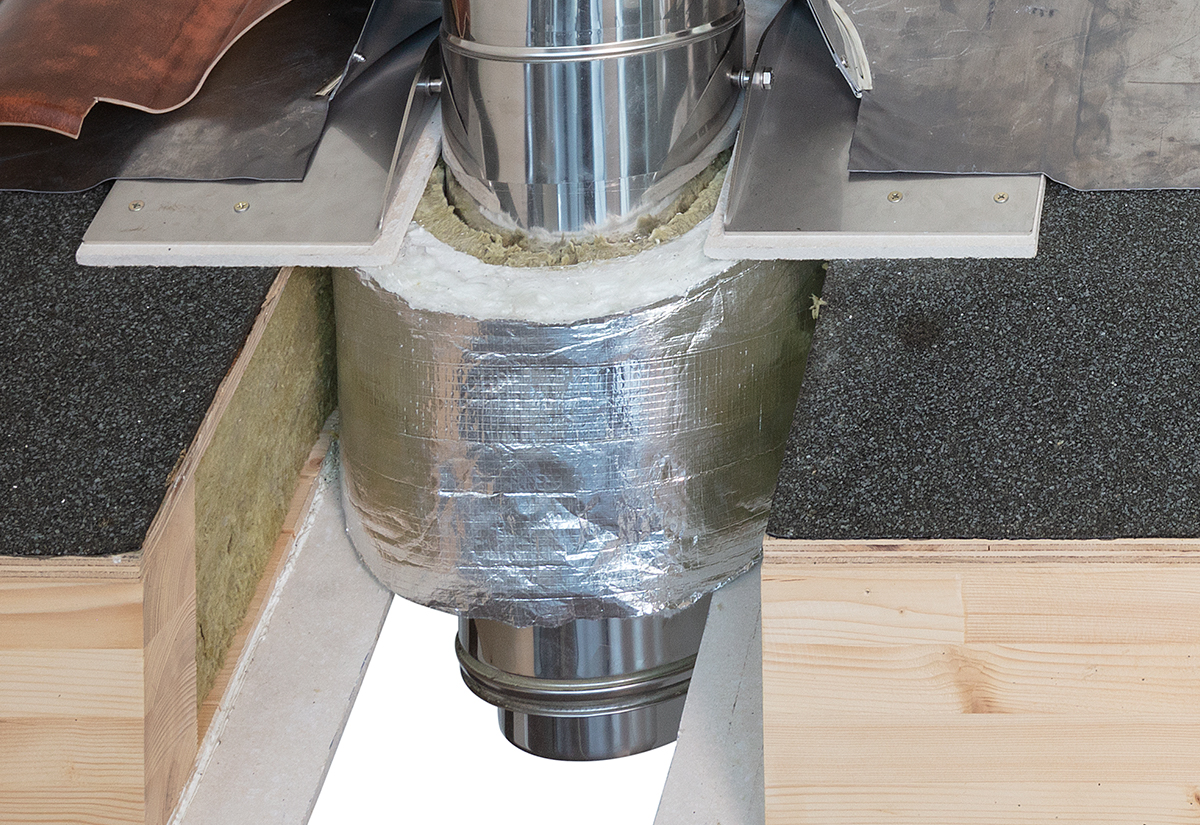

  • Installation of the NV2 KIT in direct contact with the wooden roof
  • Internal diametres from Øi 80 to Øi 300 mm
Wooden roof crossing kit for ventilated conditions KIT NV2
Finishing
  • inoxStainless steel

Components

  • Wooden roof crossing twin wall special duct, inner wall stainless steel AISI 316L and outer wall stainless steel Aisi 304, lenght L=600 mm
  • Roof support collar with fixing plates, adjustable inclination from 0° to 45°
  • Wraps - thickness 75 mm - lenght 500 mm
  • N. 4 lower/upper closing panels in calcium silicate



  • Twin wall insulated flue pipe
