KIT V1

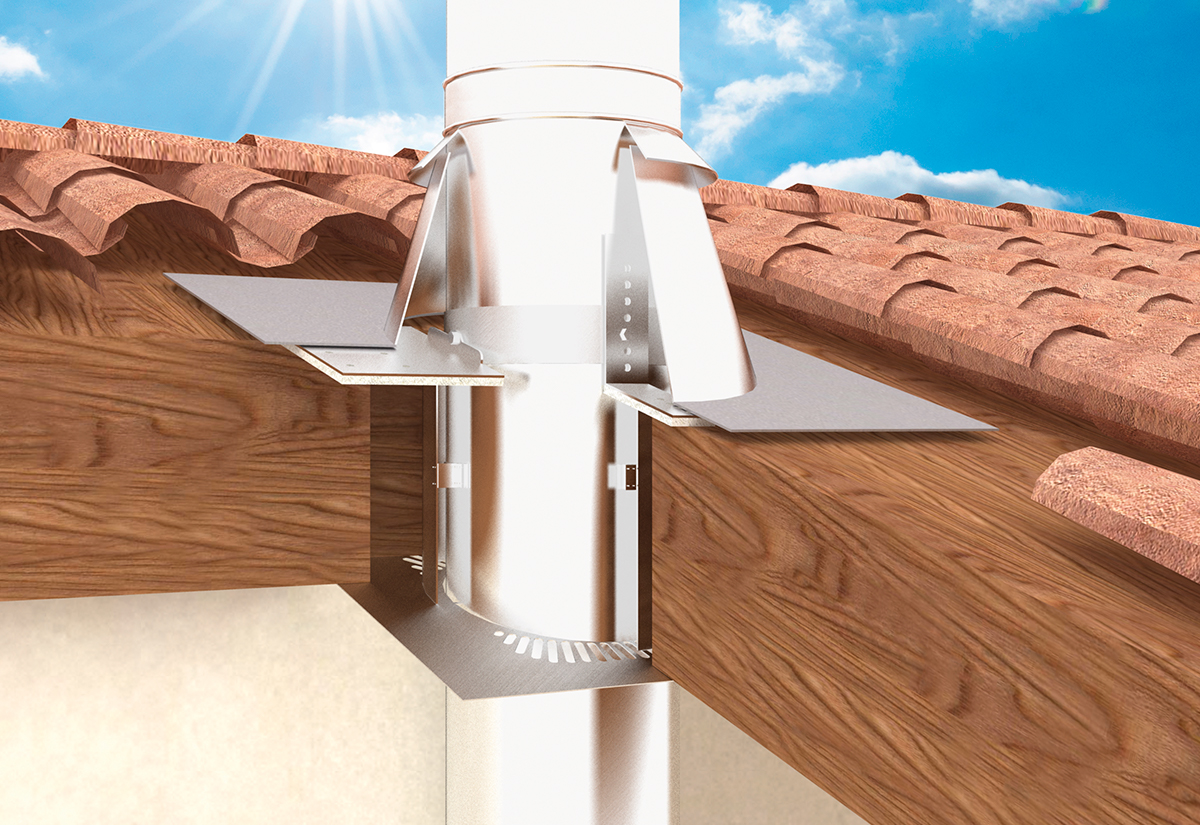

Wooden roof crossing kit for not ventilated conditions

  • Stainless steel twin wall crossing/fixing system for wooden roofs/floors, insulation 25/50 mm
  • Wooden roof crossing system with ventilated conditions
  • Total compatibility with the single/twin wall range
  • Working temperature up to 600ºC and soot fires resistant
  • Minimum distance between the KIT V1 and the wooden roof is 50 mm
  • Internal diametres from Øi 80 to Øi 300 mm
Wooden roof crossing kit for not ventilated conditions KIT V1
Finishing
  • inoxStainless steel

Components

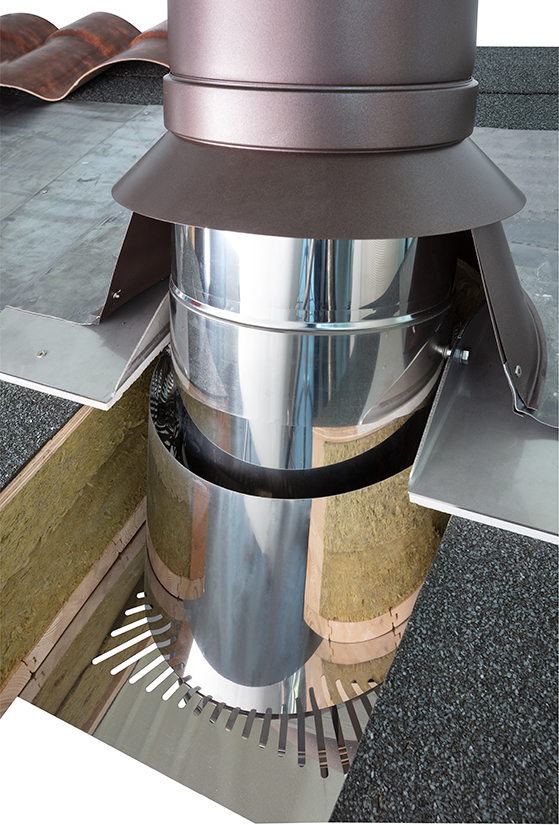

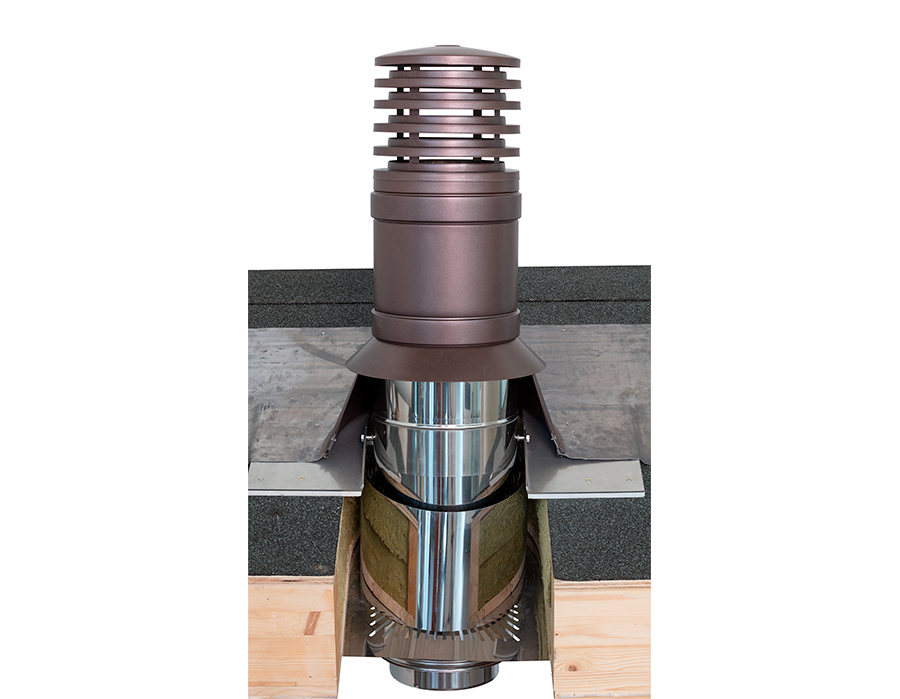

  • Wooden roof crossing twin wall special duct, inner wall stainless steel AISI 316L and outer wall stainless steel AISI 304, lenght L=600 mm
  • Roof support collar with fixing plates, adjustable inclination from 0° to 45°
  • Stainless steel protection screen, to be cut to measure on site based on the height and slope of the roof
  • Stainless steel finishing plate for lower floor



  • Twin wall insulated flue pipe
